Directional Panel Antenna
View detail

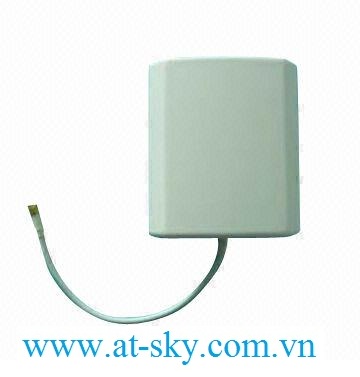

Directional Panel Antenna JCW-2400-14E
Features:
- Good appearance
- Durable, corrosion resistance, waterproof
- Full day for working
- Optimized dimension
- High Gain, Lower VSWR, Strongly Anti-interference
Directional Panel Antenna Application：
- 2.4GHZ WLAN System
- 2.4GHZ ISM application
- WIFI Telecommunication system
|
Model NO |
|
JCW-2400-14E |
|
|
|
|
|
|
|
|
Electric Specification |
|
|
|
|
|
|
|
|
Frequency rang-MHz |
|
2400-2483 |
|
|
|
|
|
|
|
Bandwidth -MHz |
|
|
83 |
|
|
|
|
|
|
Gain -dBi |
|
|
14 |
|
|
|
|
|
|
beam width -° |
|
H：65 |
V：30 |
|
|
|
|
|
|
VSWR |
|
≤1.5 |
|
|
|
|
|
|
|
Input Impedance-Ω |
|
|
50 |
|
|
|
|
|
|
Polarization |
|
Vertical |
|
|
|
|
|
|
|
Max power -W |
|
|
50 |
|
|
|
|
|
|
Lightning protection |
|
DC ground |
|
|
|
|
|
|
|
Connector model |
|
SMA female or others |
|
|
|
|
|
|
|
|
Mechanical Specification |
|
|
|
|
|
||
|
Size -mm |
|
210*180*45 |
|
|
|
|
|
|
|
Antenna weight-kg |
|
|
0.58 |
|
|
|
|
|
|
Working Temperature -°c |
|
-40～60 |
|
|
|
|
|
|
|
Rated Wind Velocity-m/s |
|
|
60 |
|
|
|
|
|
|
Radome color |
|
white |
|
|
|
|
|
|
|
Mounting way |
|
mount on the wall or hold in the pole |
|
|
|
|
|
|
