Error correction mode: Support On-die-ECC; Prefetch mode: Support 16n Prefetch mode (BL16); End-to-end reception mode: Expansion to add CA/CS type signal ODT

DDR5 DIMM

284 views

  • Error correction mode: Support On-die-ECC

  • Prefetch mode: Support 16n Prefetch mode(BL16)

  • End-to-end reception mode:Expansion to add CA/CS type signal ODT

  • Balanced mode: Support DFE technology (enhance signal integrity)

  • Power management mode: Increase PMIC integration function

  • Refresh mode: Support SAME-BANK Refresh technology

  • Channel mode: Built-in independent dual channel mechanism

  • Array layering mode: Support 8 BGs, a total of 32 Banks

Features
  • Error correction mode: Support On-die-ECC
  • Prefetch mode: Support 16n Prefetch mode(BL16)
  • End-to-end reception mode:Expansion to add CA/CS type signal ODT
  • Balanced mode: Support DFE technology (enhance signal integrity)
  • Power management mode: Increase PMIC integration function
  • Refresh mode: Support SAME-BANK Refresh technology
  • Channel mode: Built-in independent dual channel mechanism
  • Array layering mode: Support 8 BGs, a total of 32 Banks
View detail
Product Series Design Reference Interface Capacity PCB Design Architecture Rate CL Value Timing Clock Operating Voltage Activation Voltage Operating Temperature Gold Fingers (Edge Connectors) Size

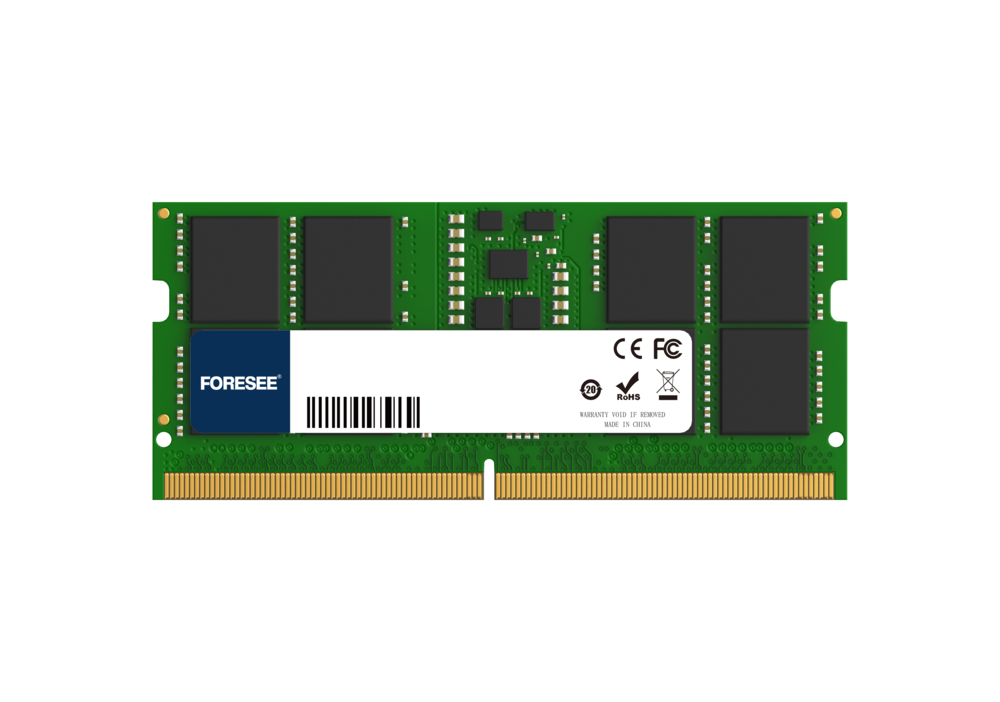

DDR5 SO-DIMM JEDEC R/C A 0.70 262PIN 16GB 8L 2 Channel×32bit 4800 Mbps 40(Default) 40-40-40 40-40-40 1.1V 1.8V 0°C~ 70°C 30u” 69.6*30 mm
SO-DIMM 32GB

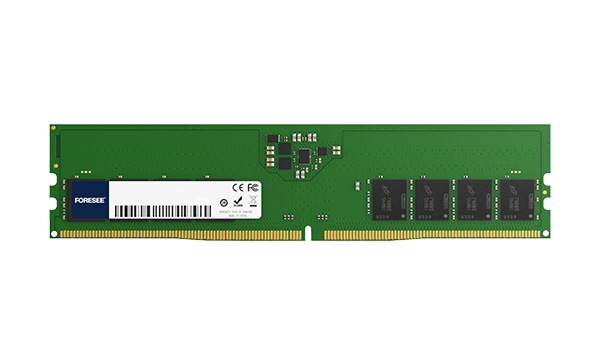

DDR5 U-DIMM JEDEC R/C A 0.70 288PIN 16GB 8L 2 Channel×32bit 4800 Mbps 40(Default) 40-40-40 40-40-40 1.1V 1.8V 0°C~ 70°C 30u” 133.35*31.25 mm
U-DIMM 32GB

I. Product Advantages

The gold-plating process of edge connectors follows the industry's mainstream standards.
The product complies with commercial-grade product standards, meets different requirements of industry users, and features high stability, an ultra-low failure rate, and reliable product quality.
They come with a complete retention cycle for storing core materials procured by clients, introduction and certification of the latest technologies, and a Last-Buy mechanism for up to one year.

II. Application

Commercial display device, All-in-one machine, Desktop, Intelligent government terminal, Edge computing, Game systems (PC), Government office system

III. Compatible Platforms

Number

Platform

01

Intel

02

AMD

(The product supports mainstream platforms and only part of it is shown here.)

Price list

Quantity Unit Price Extended Price
1+ 0
