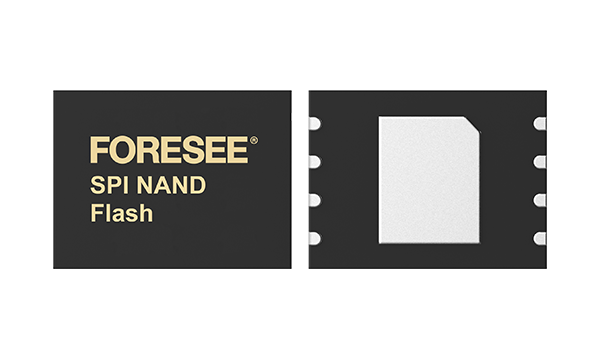

SPI NAND Flash
- The product supports standard SPIs and dual or quad I/O channels.
- It is equipped with internal ECC.
- The operating voltage of 3.3V complies with mainstream product standards.
- The operating temperature range of –40°C to +85°C meets the temperature requirements of industrialgrade products.
- The capacity from 1Gbit to 4Gbit can meet various capacity requirements.
- The data retention period is up to 10 years with 100,000 write/erase cycles
Features
- The product supports standard SPIs and dual or quad I/O channels.
- It is equipped with internal ECC.
- The operating voltage of 3.3V complies with mainstream product standards.
- The operating temperature range of –40°C to +85°C meets the temperature requirements of industrialgrade products.
- The capacity from 1Gbit to 4Gbit can meet various capacity requirements.
- The data retention period is up to 10 years with 100,000 write/erase cycles
View detail
| Product Series | SPI NAND Flash |
| Package | WSON8 |
| Capacity | 512Mb, 1Gb, 2Gb, 4Gb |
| P/N | F35SQA512M-WWT, FS35ND01G-S1Y2QWFI000, F35SQA001G-WWT, FS35ND02G-S3Y2QWFI000, F35SQA002G-WWT, FS35ND04G-S2Y2QWFI000 |
| Interface mode | Standard- Dual- Quad |
| Voltage | 3.3V, 1.8V |
| Operating Temperature | -40℃~85℃ |
| Size | 8*6*0.8 mm |
I. Product Advantages
The product utilizes WSON8 packaging to save PCB space.
The product is equipped with a general-purpose SPI and internal error correcting code (ECC) to improve data transmission efficiency and ensure data reliability.
It also supports OTP, allowing more room for customers to securely store information.
II. Application
Wi-Fi router, PON, Video doorbell, Industrial IPC, Home IPC, Smart speaker, STB
III. Compatible Platforms
|
Number |
Platform |
|
01 |
Intel |
|
02 |
Allwinner |
|
03 |
MediaTek |
|
04 |
Amlogic |
|
05 |
Ambarella |
|
06 |
Rockchip |
|
07 |
Marvell |
|
（The product supports mainstream platforms and only part of it is shown here.） |
|
IV. Product Parameter
| Product Series | NAND Flash | Capacity | Package | Interface mode | Voltage | Operating Temperature | Size | P/N |
|---|---|---|---|---|---|---|---|---|
| SPI SLC NAND Flash | SLC NAND | 512Mbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 8*6mm | F35SQA512M-WWT (R) |
| SPI SLC NAND Flash | SLC NAND | 512Mbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 6*5mm | F35SQA512M-VWT (R) |
| SPI SLC NAND Flash | SLC NAND | 512Mbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 8*6mm | F35UQA512M-WWR |
| SPI SLC NAND Flash | SLC NAND | 512Mbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 6*5mm | F35UQA512M-VWR |
| SPI SLC NAND Flash | SLC NAND | 1Gbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 8*6mm | F35SQA001G-WWT (R) |
| SPI SLC NAND Flash | SLC NAND | 1Gbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 6*5mm | F35SQA001G-VWT (R) |
| SPI SLC NAND Flash | SLC NAND | 1Gbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 8*6mm | F35UQA001G-WWR |
| SPI SLC NAND Flash | SLC NAND | 1Gbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 6*5mm | F35UQA001G-VWR |
| SPI SLC NAND Flash | SLC NAND | 1Gbit | WSON | SPI | 1.7~1.95V |
-40~105℃ (Automotive Grade2) |
8*6mm | F35UQA001G-W2R |
| SPI SLC NAND Flash | SLC NAND | 2Gbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 8*6mm | F35SQA002G-WWT |
| SPI SLC NAND Flash | SLC NAND | 2Gbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 8*6mm | F35UQA002G-WWR |
| SPI SLC NAND Flash | SLC NAND | 4Gbit | WSON | SPI | 2.7~3.6V | -40~85℃ | 8*6mm | F35SQB004G-WWT |
| SPI SLC NAND Flash | SLC NAND | 4Gbit | WSON | SPI | 1.7~1.95V | -40~85℃ | 8*6mm | F35UQB004G-WWT |
| SPI SLC NAND Flash | SLC NAND | 4Gbit | WSON | SPI | 1.7~1.95V | -40~105℃(Automotive Grade2) | 8*6mm | F35UQB004G-W2R |
