Multi-band LTE Cat NB2 module; 17.7mm × 15.8mm × 2mm; 1.8g; SMT form factor; LCC package; Max. 127Kbps downlink / 158.5Kbps uplink; Extended temperature range of -40°C to +85°C

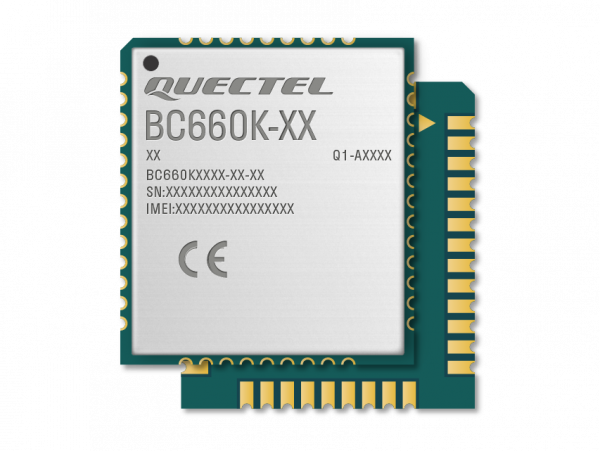

BC660K-GL

393 views

  • Ultra-low power consumption

  • Ultra-low cost

  • Built-in eSIM reserved

  • Wide power supply range: 2.2–4.3 V

  • Compatible with Quectel GSM/GPRS M66 and NB-IoT BC66 modules for easy upgrades

Features
  • Ultra-low power consumption
  • Ultra-low cost
  • Built-in eSIM reserved
  • Wide power supply range: 2.2–4.3 V
  • Compatible with Quectel GSM/GPRS M66 and NB-IoT BC66 modules for easy upgrades
View detail
Form Factor LCC
Dimensions (mm) 17.7 × 15.8 × 2.0
RAT LTE Cat NB2
Frequency Bands (MHz) B1/2/3/4/5/8/12/13/17/18/19/20/25/28/66/70/85
Weight (approx.) g 1.0±0.2
Operating Temperature -35°C ~ +75°C
Extended Temperature -40°C ~ +85°C
Data Transmission
LTE Cat NB1 data rate (Kbps) Single-tone: 25.5(DL)/16.7(UL) Multi-tone: 127(DL)/158.5(UL)
LTE Cat NB2 data rate (Kbps) Max. 127 (DL)/ 158.5 (UL)
GPRS data rate (Kbps) /
SMS Text Mode
Protocols UDP/TCP/PING/LwM2M/SNTP/COAP/COAPS/HTTP/HTTPS/MQTT/MQTTS/SSL/TLS
Interfaces
(U)SIM × 1(1.8V/3.0V)
UART UART × 2 (for QuecOpen® version, × 3)
I2C × 1 (for QuecOpen® version only)
ADC × 1 (for QuecOpen® version, × 2)
GPIO × 4 (for QuecOpen® version, × 16)
RESET(RESET_N) × 1
SPI × 1 (for QuecOpen® version only)
PWM × 1 (for QuecOpen® version only)
RI × 1
PSM_EINT × 1 (for QuecOpen® version, × 2)
I2S /
NETLIGHT × 1
WAKEUP_OUT /
Antenna Primary
Enhanced Features
QuecOpen®
DFOTA
BLE 5.0 /
Firmware Update via UART/DFTOA
RAI
Location Based Service /
eSIM* Optional
Electrical Features
Supply Voltage Range 2.2–4.3 V, typ. 3.3 V
Power Consumption 800 nA @ PSM1
Certifi cations GCF/CE/PTCRB/FCC/IC/Anatel/KC/RCM/IMDA/NBTC/ICASA/ATEX/JATE/TELEC/Vodafone/Deutsche Telekom/Verizon/AT&T/T-Mobile/KT/LGU+/Telefónica/Orange/Optus/Telstra/Spark
Recommended
Applications
Gas detectors, soil PH testers, optical sensors, machinery alarm systems, irrigation controllers, elevators, asset tracking, electronics, person/pet tracking, water/gas metering, smart parking systems, fi re hydrants, smoke alarms, smart bins, street lighting

I. Overview

The BC660K-GL is a high-performance LTE Cat NB2 module which supports multiple frequency bands of B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B66/B70/B85 with extremely low power consumption. The module’s ultra-compact profile makes it a perfect choice for size-sensitive applications. Designed to be compatible with Quectel's GSM/GPRS M66 module and NB-IoT BC66 module in form and size, it provides a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT networks.

The BC660K-GL uses surface-mount technology, which makes it an ideal solution for durable and rugged designs. The module’s small LCC package allows it to be easily embedded into space-constrained applications and to enjoy reliable connection with the applications. This kind of package suits large-scale manufacturing which has strict requirements on cost and efficiency.

Due to its ultra-compact profile, super-low power consumption and extended temperature range, the BC660K-GL is an excellent choice for a wide range of IoT applications, such as smart metering, bike sharing, smart parking, smart city, asset tracking, smart safety, home appliances, agricultural and environmental monitoring. It can also provide a complete range of SMS and data transmission services to meet various user demands.
