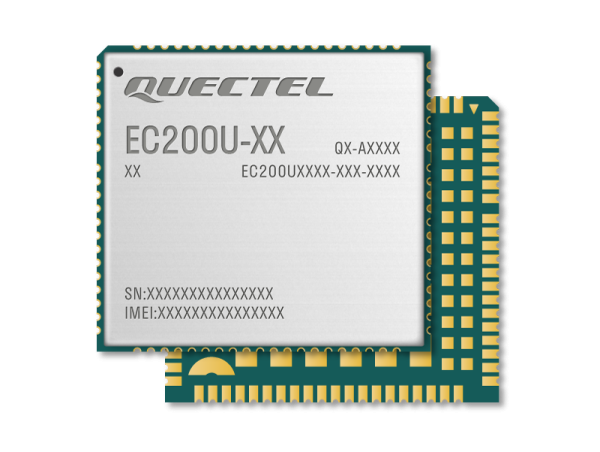

EC200U
- LTE Cat 1 module optimized for M2M and IoT applications
- Worldwide LTE, GSM/GPRS coverage
- Abundant functional interfaces
- Support analog audio
- Built-in GNSS (optional)
- Feature refinements: support Wi-Fi Scan (optional), Bluetooth (optional) and FOTA
- High performance
Features
- LTE Cat 1 module optimized for M2M and IoT applications
- Worldwide LTE, GSM/GPRS coverage
- Abundant functional interfaces
- Support analog audio
- Built-in GNSS (optional)
- Feature refinements: support Wi-Fi Scan (optional), Bluetooth (optional) and FOTA
- High performance
View detail
| Form Factor | LCC (EC200U); Mini PCIe-C(EC200U-CN Mini PCIe-C); Mini PCIe(EC200U-EU/-AU Mini PCIe) | |
| Dimensions (mm) | 28.0 × 31.0 × 2.4 (EC200U); | |
| 30.0 × 51.0 × 3.4 (EC200U-CN Mini PCIe-C); | ||
| 30.0 × 51.0 × 4.9 (EC200U-EU/-AU Mini PCIe) | ||
| LTE Category | LTE Cat 1 | |
| -CN (China/India) | LTE-FDD: B1/3/5/8; LTE-TDD: B34/38/39/40/41; GSM: B3/8 | |
| -EU (Europe/Asia-Pacifi c) | LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41; GSM: B2/3/5/8 | |
| -EN (EMEA/APAC) | / | |
| -EL (Europe/Asia-Pacifi c) | / | |
| -AU (Australia/New | LTE-FDD: B1/2/3/4/5/7/8/28/66; LTE-TDD: B38/40/41; GSM: B2/3/5/8 | |
| Zealand/Latin America) | ||
| Weight (approx.) g | 4.1(EC200U); 7.2(EC200U-CN Mini PCIe-C); | |
| 9.25(EC200U-EU/-AU Mini PCIe) | ||
| Operating Temperature | -35°C ~ +75°C | |
| Extended Temperature | -40°C ~ +85°C(EC200U); | |
| -40°C ~ +80°C(EC200U-CN Mini PCIe-C/EC200U-EU/-AU Mini PCIe) | ||
| Data Transmission | ||
| LTE data rate (Mbps) | Max. 10 (DL)/Max. 5 (UL)(EC200U); LTE-FDD: Max. 10 (DL)/Max. 5 (UL), | |
| LTE-TDD: Max. 8.96 (DL)/Max. 3.1(UL)(EC200U-CN Mini PCIe-C, EC200U-EU/-AU Mini PCIe) | ||
| DC-HSPA+ data rate (Mbps) | / | |
| WCDMA data rate (Kbps) | / | |
| EDGE data rate (Kbps) | / | |
| GPRS data rate (Kbps) | Max. 85.6 (DL)/Max. 85.6 (UL) | |
| SMS | ● | |
| CSD | / | |
| Protocols | TCP/UDP/PPP/FTP/HTTP/NTP/PING/NITZ/CMUX/HTTPS/SMTP/MMS/FTPS/SMTPS/SSL/FILE (EC200U); TCP/UDP/PPP/NITZ/PING/FILE/MQTT/NTP/HTTP/HTTPS/SSL/FTP/FTPS/CMUX/MMS(EC200U-CN Mini PCIe-C, EC200U-EU/-AU Mini PCIe) | |
| Interfaces | ||
| (U)SIM | 1.8 V/ 3.0 V | |
| UART | × 3(EC200U); | |
| × 1(EC200U-CN Mini PCIe-C, EC200U-EU/-AU Mini PCIe) | ||
| USB | USB 2.0 (Hi-Speed) | |
| PCIe | / | |
| Audio Digital (PCM) | ● (EC200U/EC200U-EU/-AU Mini PCIe) | |
| IIC | × 2(EC200U); × 1(EC200U-EU/-AU Mini PCIe) | |
| GPIO | ● (Only Supported on QuecOpen®)(EC200U-CN Mini PCIe-C, EC200U-EU/-AU Mini PCIe) | |
| RESET_N | ●(EC200U) | |
| SD | ●(EC200U) | |
| ADC | ●(EC200U) | |
| Antenna | Pads for Primary, Rx-diversity | |
| Enhanced Features | ||
| GNSS | Optional | |
| WiFi-Scan | Optional | |
| BlueTooth | Optional | |
| Digital Audio/VoLTE | ● | |
| DTMF | ● | |
| DFOTA | ● | |
| Audio Playback/Audio Recording | ● | |
| QuecFile | ● (only support ufs) | |
| USB Serial Driver | Windows 7/8/8.1/10/11,Linux 2.6~5.18, Android 4.x~12.x | |
| GNSS Driver | Android 4.x~12.x | |
| RIL Driver | Android 4.x~12.x | |
| RNDIS Driver | Windows 7/8/8.1/10/11,Linux 2.6~5.18 | |
| ECM Driver | Linux 2.6~5.18 | |
| (U)SIM Card Detection | ● | |
| Firmware Update | ●(USB or DFOTA)(EC200U); Via USB/DFOTA (EC200U-CN Mini PCIe-C, EC200U-EU/-AU Mini PCIe) | |
| Electrical Features | ||
| Supply Voltage Range | 3.3 V~4.3 V, typ. 3.8 V (EC200U/EC200U-CN Mini PCIe-C); | |
| 3.0 V~3.6 V, typ. 3.3 V (EC200U-EU/-AU Mini PCIe) | ||
| Power Consumption | 30 μA @Power off Mode/1.35 mA @LTE Sleep Mode(PF=256), Typ/13 mA @Idle Mode(EC200U); 4.13 mA @ LTE sleep (PF = 128)/3.94 mA @ LTE sleep (PF = 256)/29 mA @ Idle (PF = 64, USB connection)/18 mA @ Idle (PF = 64, USB disconnection)(EC200U-CN Mini PCIe-C); 4.54 mA @ LTE sleep (PF = 128)/4.31 mA @ LTE sleep (PF = 256)/ 37.17 mA @ Idle (PF = 64, USB connection)/22.40 mA @ Idle (PF = 64, USB disconnection)(EC200U-EU/-AU Mini PCIe) | |
| Certifications | NAL/SRRC/CCC/CE/RCM/FCC/Anatel/KC/KT | |
| Recommended Applications | POS/POC/ETC, shared equipment, data cards, energy control and monitoring, safety and protection, industrial PDAs. | |
I. Overview
Quectel's EC200U is a series of the latest LTE Cat 1 modules optimized specially for M2M and IoT applications. It delivers maximum data rates of 10Mbps downlink and 5Mbps uplink. Designed in a compact and unified form factor, the EC200U series is compatible with Quectel's multi-mode LTE Standard EC20-CE, EC200S series, EC21 series, EC25 series, EG21-G and EG25-G, ensuring that it can easily migrate among compatible LTE modules. The EC200U series also supports standard Mini PCIe packages to meet the needs of different industry applications.
The EC200U series contains three variants: EC200U-CN, EC200U-EU and EC200U-AU, which meets the frequency band coverage of different countries and regions. Using a laser engraving process, EC200U series features a better appearance, strong metallic texture, better heat dissipation capability and durable label information, which makes it ideally suited for automation requirements.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux, Android) allow the EC200U series to serve a wide range of M2M and IoT applications such as POS, POC, ETC, shared equipment, data cards, energy control and monitoring, smart safety, and industrial PDAs.
