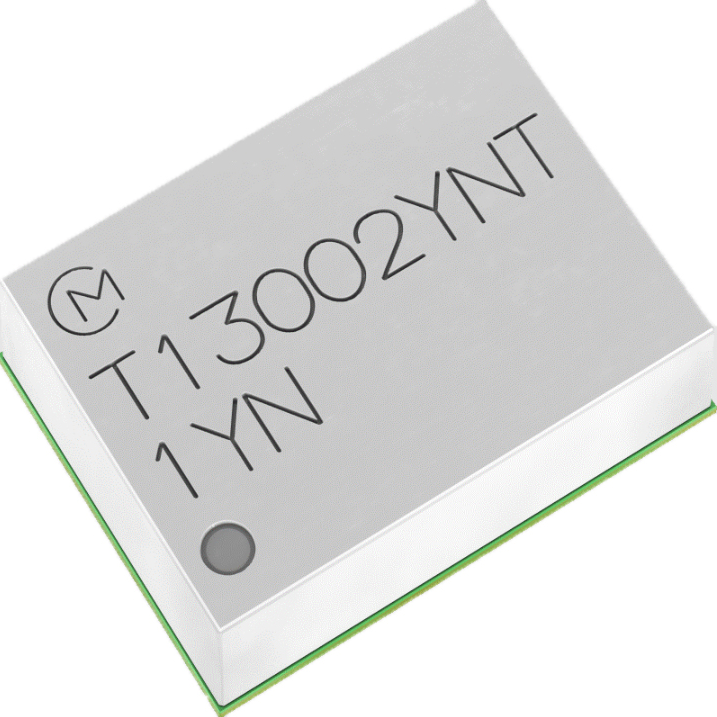

LBEE5KL1YN
- Shielded Ultra Small Wi-Fi® 11b/g/n + Bluetooth® 5.2 Module
- 2.4GHz Wi-Fi® + Bluetooth® Module
- Chipset: Infineon (CYW43439)
- Processor: No
- FCC/IC "Reference" Certified
- High Performance Capabilities for Internet of Things
- For Industrial IoT, Smart Home, Sensor Network, Gateway
- 802.11 b/g/n 65Mbps
- NXP i.MX Linux and FreeRTOS, Infineon WICED
- Host-based single band WIFI+BT cost effective module CYW43439
Features
- Shielded Ultra Small Wi-Fi® 11b/g/n + Bluetooth® 5.2 Module
- 2.4GHz Wi-Fi® + Bluetooth® Module
- Chipset: Infineon (CYW43439)
- Processor: No
- FCC/IC "Reference" Certified
- High Performance Capabilities for Internet of Things
- For Industrial IoT, Smart Home, Sensor Network, Gateway
- 802.11 b/g/n 65Mbps
- NXP i.MX Linux and FreeRTOS, Infineon WICED
- Host-based single band WIFI+BT cost effective module CYW43439
View detail
| Part Number | LBEE5KL1YN-814 |
| Data Sheet | |
| Type Name | Type 1YN |
| IC Manufacturer | Infineon |
| Chipset | CYW43439 |
| Technology | Wi-Fi,Bluetooth |
| Wi-Fi | Wi-Fi 4 |
| Frequency | 2.4GHz |
| Bluetooth | 5.2 BR/EDR/LE |
| Host Interface (Wi-Fi) | SDIO |
| Host Interface (Bluetooth) | UART |
| Peripheral Interface | GPIO/SDIO/UART |
| Processor | No |
| Platform | WICED,i.MX Yocto |
| Integrated Antenna | No |
| Dimension | 6.95 x 5.15 x 1.1 mm |
| Supply Voltage | 3.2V to 4.2V |
| Interface Voltage | 1.8V,3.3V |
| FCC/IC Certified | Yes |
| ETSI Report | Yes |
| MIC (Japan) Certified | Yes |
| Operating Temperature (degC) | -30℃ to 70℃ |
| Mounting Type | SMT |
| Package | Shielded Resin |
| Packaging | Tape and Reel |
I. Description
- Type 1YN is a small and high performance module based on Infineon CYW43439 combo chipset which supports Wi-Fi® 802.11b/g/n + Bluetooth® 5.2 BR/EDR/LE up to 65Mbps PHY data rate on Wi-fi® and 3Mbps PHY data rate on Bluetooth®. The WLAN section supports SDIO v2.0 interface and the Bluetooth® section supports high-speed 4-wire UART interface and PCM for audio data.
- The CYW43439 implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms, which ensure that WLAN and Bluetooth® collaboration is optimized for maximum performance.
- Type 1YN module is packaged in an impressively small shielded form factor that facilitates integration into size- and power-sensitive applications such as IoT applications, handheld wireless system, gateway and more.
II. Software
| Software |
WICED™ is a Infineon development system that vastly reduces the effort required to add wireless connectivity to embedded devices. The SDK enables developers to quickly create network connected applications targeted for low-resource microcontrollers. The WICED™ SDK includes: |
|---|---|
| Driver Firmware |
Linux driver/firmware for NXP i.MX platform |
III. Block Diagram
IV. Eval Tool
| Evaluation Tool |
For Linux: 1YN M.2 Module by Embedded Artists.  |
|---|
