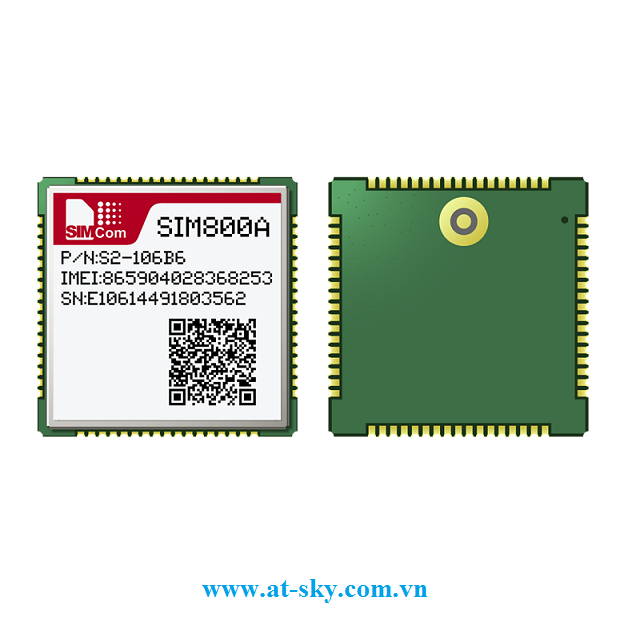

GSM/GPRS - SIM800A
- Quad-band: 850/ 900/ 1800/ 1900 MHz
- Dual SIM Cards: only one SIM card can work at a time
- GPRS Multi-slot Class: 12, 1~12 configurable
- GPRS Mobile Station: Class B
- Control via AT commands
- Supply Voltage Range: 3.3~4.6V
- Dimensions: 19.9 x 23.6 x 2.65mm
| Standard Package | 0 |
| Series | - |
| Communication Type | GSM/ GPRS |
| Frequency Band (MHz) | 900/1800 |
| LTE Data Rate (Mbps) | - |
| HSPA+ Data Rate (Mbps) | - |
| UMTS Data Rate (Kbps) | - |
| WCDMA Data Rate (Kbps) | - |
| TD-SCDMA Data Rate (Mbps) | - |
| EDGE Data Rate (Kbps) | - |
| GPRS Data Rate (Kbps) | 85.6 (DL & UL) |
| Protocols | TCP/ UDP/ PPP/ HTTP/ FTP/ SMTP/ PING/ NTP/ NITZ/ MMS Sending/ SSL |
| GNSS | - |
| Communication | 2 x UART |
| Audio | 1 inputs/ 1 outputs Analog; 1 Digital |
| SIM Interface | 1.8V/ 3V |
| Embedded FW | - |
| Voltage - Supply | 3.4V - 4.4V |
| Power Consumption | 1.3mA @DRX=5; 1.2mA @DRX=9 |
| Packaging | Tape & Reel (TR) |
| Standard Package Quantity | 250 |
| Dimensions | 24.0mm L x 24.0mm W x 3.0mm H |
| Weight (approx.) | 3.1 g |
| Temperature Range | -40°C ~ 85°C |
Price list
| Quantity | Unit Price | Extended Price |
|---|---|---|
| 1+ | 0 | 0 |
