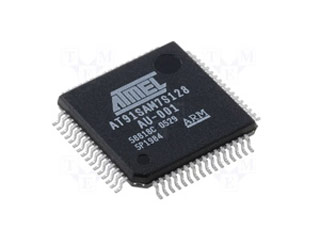

AT91SAM 32-bit ARM-based Microcontrollers LQFP-64 package
128K Flash, 32K SRAM, 8 chanel 10-bit ADC

Description:
The AT91SAM7S128 is a low pincount Flash microcontroller based on the 32-bit ARM7TDMI RISC processor. It features 128K bytes of embedded high-speed Flash with sector lock capabilities and a security bit, and 32K bytes of SRAM. The integrated proprietary SAM-BA Boot Assistant enables in-system programming of the embedded Flash.

Its extensive peripheral set includes a USB 2.0 Full Speed Device Port, USARTs, SPI, SSC, TWI and an 8-channel 10-bit ADC. Its Peripheral DMA Controller channels eliminate processor bottlenecks during peripheral-to-memory transfers. Its System Controller manages interrupts, clocks, power, time, debug and reset, significantly reducing the external chip count and minimizing power consumption.

In industrial temperature, worse case conditions the maximum clock frequency is 55MHz. Typical core supply is 1.8V, I/Os are supplied at 1.8V or 3.3V and are 5V tolerant. An integrated Voltage Regulator permits single supply at 3.3V. The AT91SAM7S128 is supplied in a 64-lead LQFP or QFN Green package. It is supported by an Evaluation Board and extensive application development tools.

The AT91SAM7S128 is a general-purpose microcontroller, providing an ideal migration path for 8-bit applications requiring additional performance, USB connectivity and extended memory

Download datasheet
