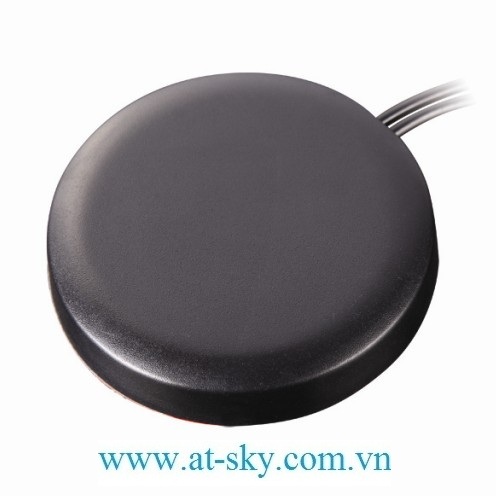

Iridium Antenna JCYX008
Receiver Antenna
- Frequency Range: 1616~1626.5MHz
- Band Width: 10.5MHz
- Polarization: RHCP
- Gain: 2dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 3dB（max）
Transmitter Antenna
- Frequency Range: 1616~1626.5MHz
- Band Width: 5.5MHz
- Polarization: RHCP
- Gain: 2dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 3dB（max）
Features
Receiver Antenna
- Frequency Range: 1616~1626.5MHz
- Band Width: 10.5MHz
- Polarization: RHCP
- Gain: 2dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 3dB（max）
Transmitter Antenna
- Frequency Range: 1616~1626.5MHz
- Band Width: 5.5MHz
- Polarization: RHCP
- Gain: 2dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 3dB（max）
View detail
|
Item |
Specifications |
||
|
Receiver Antenna |
Dielectric Antenna |
Frequency Range |
1616~1626.5MHz |
|
Band Width |
10.5MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impendance |
50Ω |
||
|
Axial Ratio |
3dB（max） |
||
|
LNA |
Gain |
26±1dB |
|
|
Noise Figure |
＜1.3 |
||
|
V.S.W.R |
＜2.0 |
||
|
Supply Voltage |
3~5V DC |
||
|
Current Consumption |
18~20mA |
||
|
Transmitter Antenna (Dielectric Antenna) |
Frequency Range |
1621.35~1626.5MHz |
|
|
Band Width |
5.15MHz |
||
|
Polarization |
RHCP |
||
|
Gain |
2dBic（Zenith） |
||
|
V.S.W.R |
＜1.5 |
||
|
Impendance |
50Ω |
||
|
Axial Ratio |
3dB（max） |
||
|

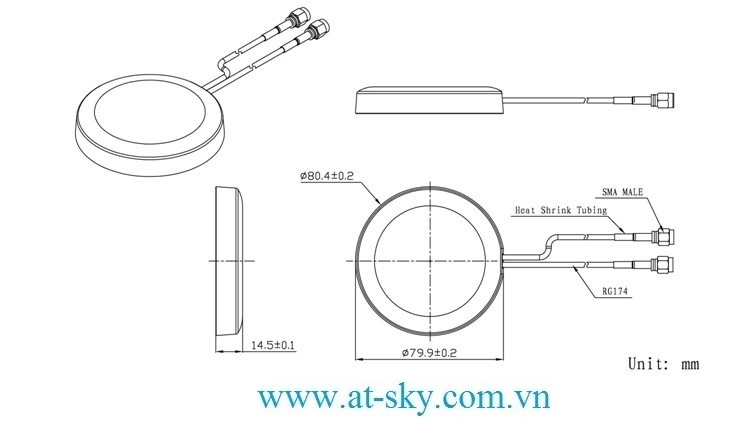

Mechanical |
Cable |
RG174 or others |
|
|
Connector |
SMA/MCX/FAKRA or others |
||
|
Radome Material |
ABS |
||
|
Mounting Method |
Magnet/Adhesive |
||
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
|
Relative Humidity |
Up to 95% |
||
|
Ingress Protection |
IP65~IP67 |
||
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
||
|
Environmentally Friendly |
ROHS Compliant |
||
