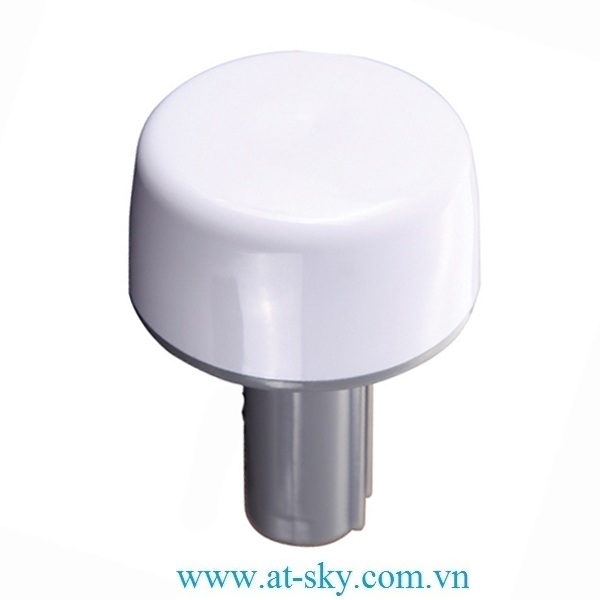

IRIDIUM ANTENNA with screw mounting JCYX005
- Frequency Range: 1616~1626.5MHz
- Band Width: 10.5MHz
- Polarization: RHCP
- Gain: 5dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 5dB（max）
Features
- Frequency Range: 1616~1626.5MHz
- Band Width: 10.5MHz
- Polarization: RHCP
- Gain: 5dBic（Zenith）
- V.S.W.R: ＜1.5
- Impendance: 50Ω
- Axial Ratio: 5dB（max）
View detail
Satellite mobile communication system is a global satellite mobile communication system the United States iridium company commissioned Motorola Company design, it is through the use of satellite mobile telephone, anywhere on earth via the satellite can make and receive calls.
|
Item |
Specifications |
|
|
Antenna
|
Frequency Range |
1616~1626.5MHz |
|
Band Width |
10.5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic（Zenith） |
|
|
V.S.W.R |
＜1.5 |
|
|
Impendance |
50Ω |
|
|
Axial Ratio |
5dB（max） |
|
|

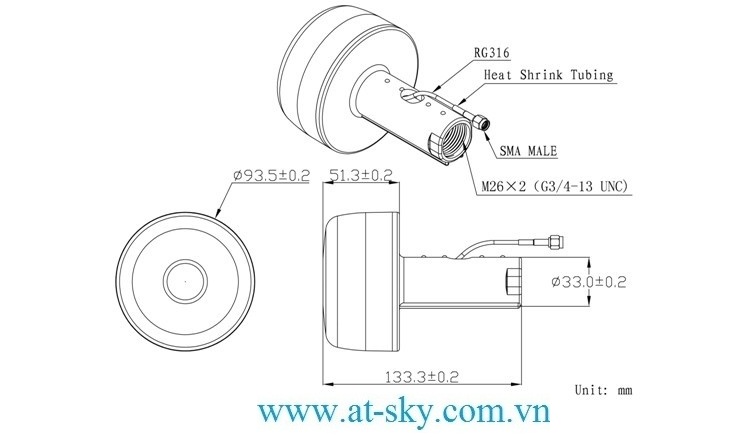

Mechanical |
Cable |
RG316 or others |
|
Connector |
SMA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
