Item

Specifications

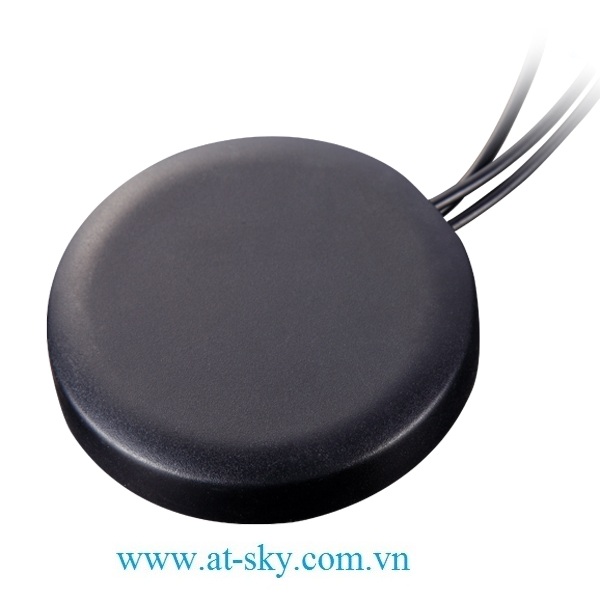

GPS Antenna

Dielectric

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic（Zenith）

V.S.W.R

＜1.5

Impendance

50Ω

Axial Ratio

3dB（max）

LNA

Gain

28±2dB

Noise Figure

＜1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

＜2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.R

＜2.0

Polarization

Linear

Gain

2.0dBi

Impendance

50Ω

WIFI Antenna

Frequency Range

2400~2483.5MHz

Band Width

83.5MHz

Polarization

Linear

Gain

3dBi

V.S.W.R

＜2.0

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP65~IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
