Center Frequency 1575.42±3MHz-Gain 5dBic(Zenith)

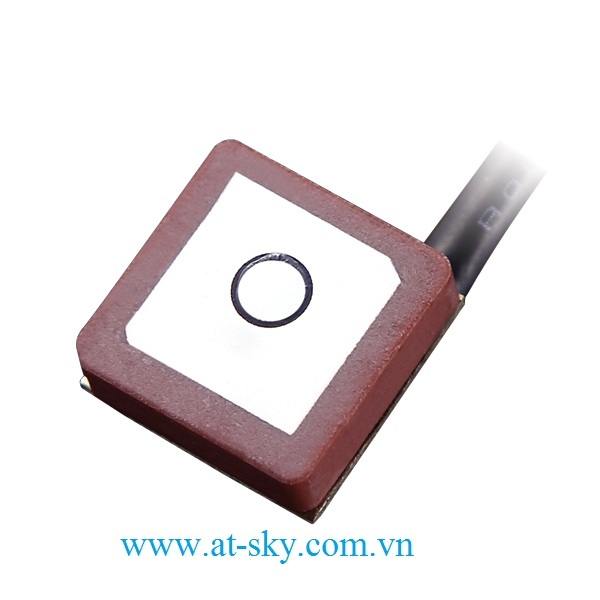

GPS internal antenna JCN055

2128 views

  • Center Frequency: 1575.42±3MHz

  • Band Width: CF±5MHz

  • Polarization: RHCP

  • Gain: 5dBic(Zenith)

  • V.S.W.R: <1.5

  • Impendance: 50Ω

  • Axial Ratio: 5dB(max)

  • Dimension: 13*13*3.5mm

Features
  • Center Frequency: 1575.42±3MHz
  • Band Width: CF±5MHz
  • Polarization: RHCP
  • Gain: 5dBic(Zenith)
  • V.S.W.R: <1.5
  • Impendance: 50Ω
  • Axial Ratio: 5dB(max)
  • Dimension: 13*13*3.5mm
View detail

Item

Specifications

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

5dB(max)

Dimension

13*13*3.5mm

LNA

Gain

22±2dB

Noise Figure

<1.5

Ex-band Attenuation

30dB@CF±40MHz

Supply Voltage

3.3V DC

Current Consumption

9mA

V.S.W.R

<2.0

Mechanical

Cable

RF1.13 or others

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
