Center Frequency 1575.42MHz±3MHz-Gain 3dB±0.5dB

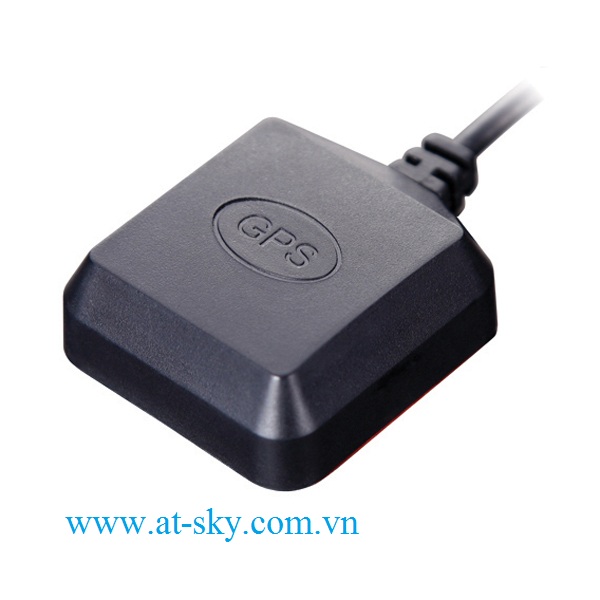

GPS Passive Antenna JCA043

1934 views

  • Center Frequency: 1575.42MHz ±3MHz

  • Band Width: ±5 MHz

  • V.S.W.R: 1.5︰1

  • Gain: 3dB±0.5dB

  • Polarization: RHCP

  • Impedance: 50 Ω

Features
  • Center Frequency: 1575.42MHz ±3MHz
  • Band Width: ±5 MHz
  • V.S.W.R: 1.5︰1
  • Gain: 3dB±0.5dB
  • Polarization: RHCP
  • Impedance: 50 Ω
View detail

   Dielectric Antenna

Form 1



No.

Item

Specifications

Post Environmental Tolerance

1

Center Frequency(MHz)

1575.42 MHz

±3 MHz

2

Band Width(MHz)

±5 MHz

±1 MHz

3

V.S.W.R(in BW )

1.5︰1

4

Gain(Zenith)

3 dB

±0.5 dB

5

Polarization

RHCP

6

Impedance

50 Ω

Mechanical

Form 2





No.

Item

Specification

1

Cable

RG174 3m/5m or others

2

Connector

SMA/SMB/MCX or others

3

Plastic Housing

Black

4

Mounting

Magnet/Adhesive





Price list

Quantity Unit Price Extended Price
1+ 0
