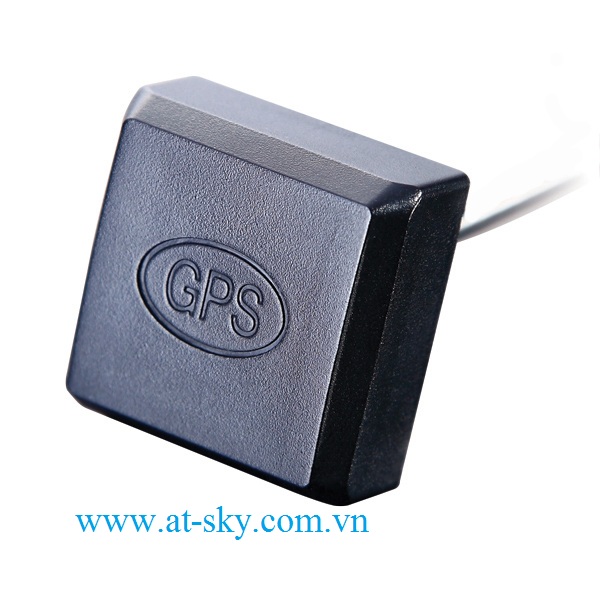

GPS Active Antenna JCA006

2046 views

  •  Center Frequency: 1575.42±1MHz

  • Band Width: CF±5MHz

  • Polarization: RHCP

  • Gain: 5dBic(Zenith)

  • V.S.W.R: <1.5

  • Impendance: 50Ω

  • Axial Ratio: 3dB(max)

  • Dimension: 31*39*14mm

Features
  •  Center Frequency: 1575.42±1MHz
  • Band Width: CF±5MHz
  • Polarization: RHCP
  • Gain: 5dBic(Zenith)
  • V.S.W.R: <1.5
  • Impendance: 50Ω
  • Axial Ratio: 3dB(max)
  • Dimension: 31*39*14mm
View detail

 Can be simply understood as: a circuit powered gps antenna is needed  GPS Active Antenna ("active antenna" or "antenna active"), the circuit is not Passive Antenna ("parasitic antenna" or "passive antenna")
This Active GPS antenna is light weight, compact, easy to connect and provides excellent reception to optimize the performance of your GPS receiver.

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

31*39*14mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant
