Arduino Mega2560 Rev3 (ATmega2560 MCU)

Arduino Mega2560 R3

5935 views





















































  • Microcontroller


ATmega2560


  • Operating Voltage


5V


  • Input Voltage (recommended)


7-12V


  • Input Voltage (limits)


6-20V


  • Digital I/O Pins


54 (of which 15 provide PWM output)


  • Analog Input Pins


16


  • DC Current per I/O Pin


40 mA


  • DC Current for 3.3V Pin


50 mA


  • Flash Memory


256 KB of which 8 KB used by bootloader


  • SRAM


8 KB


  • EEPROM


4 KB


  • Clock Speed


16 MHz

Features
  • Microcontroller
ATmega2560
  • Operating Voltage
5V
  • Input Voltage (recommended)
7-12V
  • Input Voltage (limits)
6-20V
  • Digital I/O Pins
54 (of which 15 provide PWM output)
  • Analog Input Pins
16
  • DC Current per I/O Pin
40 mA
  • DC Current for 3.3V Pin
50 mA
  • Flash Memory
256 KB of which 8 KB used by bootloader
  • SRAM
8 KB
  • EEPROM
4 KB
  • Clock Speed
16 MHz

View detail

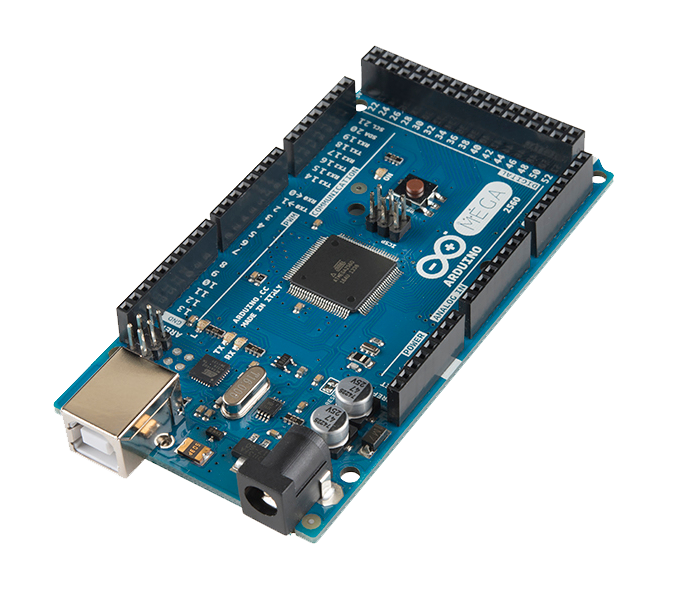

 The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 (datasheet). It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.

The Mega 2560 is an update to the Arduino Mega, which it replaces.

The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the ATmega16U2 (ATmega8U2 in the revision 1 and revision 2 boards) programmed as a USB-to-serial converter.

Revision 2 of the Mega2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

Revision 3 of the board has the following new features:

  • 1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
  • Stronger RESET circuit.
  • Atmega 16U2 replace the 8U2.
Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz
