STM32F4-Discovery

STM32F4-Discovery

7905 views

STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package

On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)

Board power supply: through USB bus or from an external 5 V supply voltage

External application power supply: 3 V and 5 V

Features

STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
Board power supply: through USB bus or from an external 5 V supply voltage
External application power supply: 3 V and 5 V

View detail

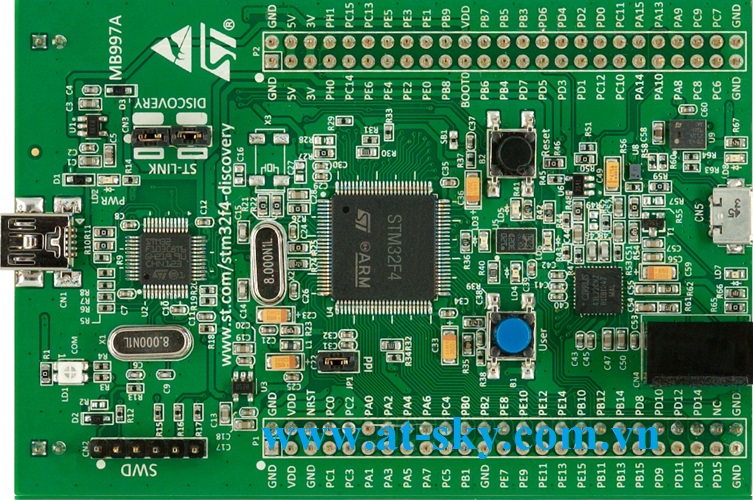

STM32F4-Discovery Discovery kit for STM32 F4 series - with STM32F407 MCU

Description

The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.

Key Features

STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
Board power supply: through USB bus or from an external 5 V supply voltage
External application power supply: 3 V and 5 V
LIS302DL, ST MEMS motion sensor, 3-axis digital output accelerometer
MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
CS43L22, audio DAC with integrated class D speaker driver
Eight LEDs:
LD1 (red/green) for USB communication
LD2 (red) for 3.3 V power on
Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
Two push buttons (user and reset)
USB OTG FS with micro-AB connector
Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

What's Onboard

Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32F4DISCOVERY official page on www.st.com to get more information: http://www.st.com/internet/evalboard/product/252419.jsp

Price list

Quantity	Unit Price	Extended Price
1	430đ	430đ
10	425đ	4,250đ
25	420đ	10,500đ
50	415đ	20,750đ
