STM32F3-Discovery
- STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
Features
- STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
View detail

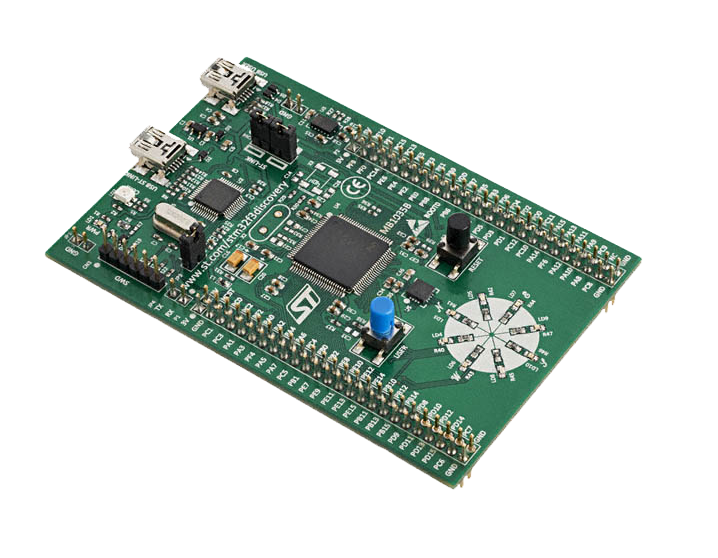

STM32F3-DISCOVERY Discovery kit for STM32 F3 series - with STM32F303 MCU
Description
STM32F3DISCOVERY helps you explore the Cortex-M composite features and develop your applications with ease. It includes everything needed for beginners and experienced users to get started quickly.
Based on the STM32F303VCT6, it includes an embedded ST-LINK / V2 embedded debug engine, two ST MEMS, digital and digital accelerator, an audio DAC with integrated D-subwoofer driver, LEDs and buttons. click and connect the micro-AB USB OTG.
A large number of free software applications available for download are available at www.st.com/stm32f3discovery to support rapid assessment and development.
Key Features
- STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
- On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
- External application power supply: 3 V and 5 V
- L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
- LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
- Ten LEDs:
- LD1 (red) for 3.3 V power on
- LD2 (red/green) for USB communication
- Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
- Two pushbuttons (user and reset)
- USB USER with Mini-B connector
- Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
What's Onboard
Design Support
For Technical Documentation, Software & Development Tools, Hardware Resources, view the STM32F4DISCOVERY official page on www.st.com to get more infomation: http://www.st.com/internet/evalboard/product/254044.jsp
Price list
| Quantity | Unit Price | Extended Price |
|---|---|---|
| 1 | 390đ | 390đ |
| 10 | 385đ | 3,850đ |
| 25 | 380đ | 9,500đ |
| 50 | 375đ | 18,750đ |
| 100+ | 370đ | 37,000đ |
Đang cập nhật.
